General Cabinetry Installation
Easy to follow step-by-step kitchen cabinet installation
TOOL AND MATERIAL LIST
STEP 1. Remove Existing Kitchen
Shut off all existing water, power and utility lines. Remove existing appliances (stove, oven, refrigeration, sink, and dishwasher). It is best to move these out of the kitchen for easier access to the work area while the remodeling is being done. Remove old cabinets and countertops. Remove any moldings from the walls where cabinets are to be installed.
NOTE: IF YOU ARE UNFAMILIAR OR UNSURE OF HOW TO HANDLE UTILITY CONNECTIONS, HAVE A QUALIFIED PROFESSIONAL PERFORM THESE DUTIES.
STEP 2. Uneven Floors & Walls
Some floors and walls have uneven (high or low) spots, which will affect the installation. It will be necessary to locate these uneven areas and shim or scribe cabinets in order to make the installation plumb, true and square. Use the following procedures to identify your uneven areas.
Using a straight 2 x 4 and carpenter’s level, find the high point of the floor (See Illustration A). Check all around the room within 24″ of the wall where base cabinets will be attached. From the high point, mark a level horizontal line with a marker along the straight edge on the walls where the cabinets will be attached.This will be called the base level line. From the base level lines you just marked, measure up 34 1/2″ and mark another level horizontal line for the base cabinets and 84″, 90″ or 96″ for the tall and wall cabinets (depending on the height of the tall and wall cabinets).The top of your base, tall and wall cabinets will be located on these marks.

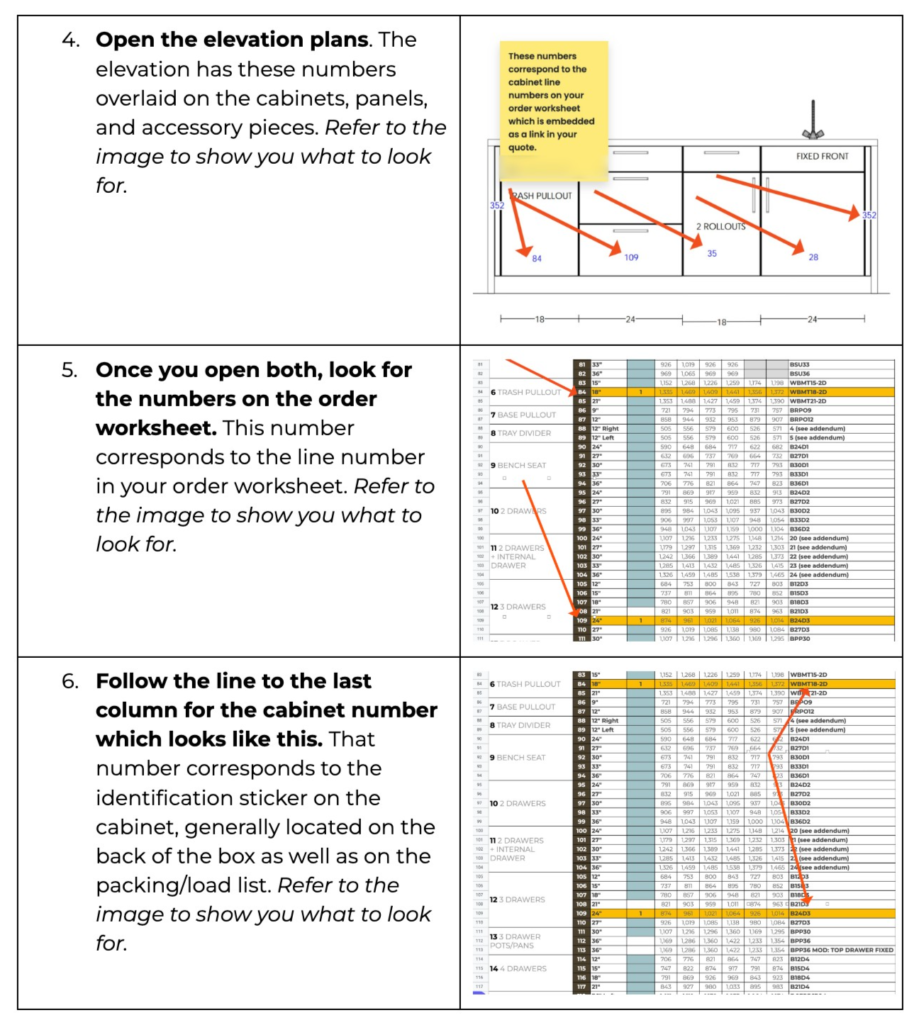

Mark the outlines of all the cabinets on the wall to check actual cabinet dimensions against your layout to confirm that the kitchen design used will work (See Illustration B).
NOTE:When measuring the wall space be sure to use the cabinet front frame dimension and not the box dimension.The front frame of the cabinet overhangs the box by 3/16″ on each end. Therefore, any measurements on the wall must coincide with the front frame measurements of each cabinet.
Using a 2 x 4 and a carpenter’s evel, check the walls for uneven spots.Wall unevenness can cause cabinets to be misaligned resulting in racking or misalignment of the doors and drawer fronts. At the point where these uneven spots interfere, high spots should be removed by scraping and sanding off excess plaster or sheet rock. Low spots should be shimmed with pieces of wood shims.
STEP 3. Finding the Studs
Locate the wall studs with the use of a magnetic stud finder or by tapping on the wall gently to find a “solid” sound. Verify the position of your studs by driving a small finishing nail into the wall. Make sure that you do this in an area that will be covered up by a cabinet. Mark all the studs on the walls that cabinets will be installed (See Illustration C). You are now ready to begin the installation of your new cabinets. First you must remove all of the doors and drawers from your cabinets.
STEP 4. Installation of the Corner Wall Cabinet
Nail a 1″ x 2″ wood furring strip with its bottom edge on the tall or wall cabinet line that you previously marked. You must begin your installation in a corner. Measure from the corner to the first stud mark and transfer the measurement to the inside of the cabinet to be installed. Repeat this step for each and every stud.Now drill a 3/16″ hole through the hang rail inside of the cabinet 3/4″ down from the top and 3/4″ up from the bottom. Raise 1″ x 2″ the cabinet up into place against the 1″ x 2″ wood furring strip and support it underneath with a wood t-brace made from scrap lumber (See Illustration D). Fasten the cabinet to the wall with #8 x 2 1/2″ wood screws. Do not fully tighten the screws.
NOTE:When installing a blind wall cabinet, make sure the cabinet is pulled out from the wall the appropriate distance as called for in your kitchen plan. See Specifications book for blind cabinet installation instructions.
STEP 5. Installation of the Next Wall Cabinet
Follow instructions in Step #4 to hang the next wall cabinet. Again, do not fully tighten the screws. Using two C-clamps, align the vertical stiles of the adjoining cabinets and hold tightly together. Drill pilot holes at hinge level through the stile of the second cabinet and just barely into the stile of the first cabinet. Using #8 x 2 1/2″ wood screws tighten securely (See Illustration E). Then, after making sure both cabinets are plumb and level, shimming where necessary, tighten all screws securely to the wall. Now continue this procedure around the room. It is important to secure all cabinets together before shimming for plumb and level. Only then should you screw the cabinets tightly to the wall.
STEP 6. Installing Fillers and Valances
Fillers are needed to take up odd dimensions when cabinets are installed next to a wall. They also allow clearance for doors and drawers to operate properly when turning a corner with a blind corner cabinet. A filler may have to be cut to size when used to take up an odd dimension next to a wall. Hold the filler in place, turn it over and on the back side make a pencil mark at top and bottom where it should be cut. Join the two marks with a pencil line and saw along that line. Put the filler in place and drill a pilot hole at hinge level through the cabinet stile and into the filler. Attach filler to the adjacent cabinet by fastening together with three #8 x 2 1/2″ wood screws (See Illustration F). Valances are installed in a similar manner; however, if trimming is necessary, you should cut from both ends equally so the valance design remains symmetrical.
STEP 7. Installation of the Base Cabinets in the Corner
WHEN USING A CORNER BLIND CABINET proceed as follows: Shim so the top of the cabinet is at the 34 1/2″ mark on the wall. Attach loosely to the wall by screwing into the wall studs through the hanging rail with #8 x 2 1/2″ wood screws as previously described. Attach filler to the adjacent cabinet and fasten the two cabinets together also using the same procedures(See Illustration G).
NOTE:When installing a blind base cabinet, make sure the cabinet is pulled out from the wall the appropriate distance as called for in your kitchen plan. See Specifications book for blind cabinet installation instructions.
WHEN USING A ROTATING OR EASY REACH CORNER BASE attach the adjacent cabinets to the carousel by drilling a pilot hole at hinge level through the stile of the adjacent cabinets into the stiles of the carousel. Screw together using #8 x 2 1/2″ wood screws. Place the three cabinets as one unit into the corner and fasten to the wall through the hanging rail of the two adjacent cabinets, as previously described (See Illustration H). Install countertop support braces as shown on the wall at the 34 1/2″ horizontal base cabinet level line.
WHEN USING A BASE CORNER FILLER fasten the two adjacent cabinets to the filler by drilling through the stile at hinge level of the cabinets into the base corner filler. Screw together. Place the three pieces into the corner as one unit and attach to the wall through the cabinet hanging rail as previously described. Now make sure all cabinets are plumb and level. Shim where necessary and tighten all screws (See Illustration I). Install countertop support braces as shown on the wall at the 34 1/2″ horizontal base cabinet level line.
STEP 8. Installing the Next Cabinet Using the Same Procedure
The remaining base cabinets are installed in the same manner. Using the two C-clamps, align stiles, drill and screw together as described in Step 5. Proceed around the room making sure all cabinets are plumb and level, shimming where necessary, then tighten all screws (See Illustration J).
STEP 9. Trim and Molding
Trim molding is used to trim out cabinetry where cabinets meet an adjacent wall, soffit, or ceiling. Carefully measure and cut to proper length.When moldings meet at a 45-degree angle, use your miter box for a proper cut. Use small finish nails or a pin nailer to attach the molding to the face frame of the cabinet (See Illustration M).
STEP 10. Final Touch-up and Door Adjustment
Now that you have finished installing your beautiful new kitchen you may notice a few things such as misaligned doors, minor nicks or scratches. Make all adjustments necessary to bring doors and drawers into perfect alignment. Make sure all screws are tight.Then touch-up any nicks or scratches that may have occurred during shipping and handling or cabinet installation. A touch-up kit is available from your dealer.
STEP 12. Trouble Shooting
The factory has very strict inspections, but problems can happen during the shipping and handling procedures, as well as during the installation. All these problems are not the fault of the cabinet manufacturer.We have listed below several common problems and causes, with simple solutions.
|Problem Situation||Possible Cause||Solution|
|Large gaps on top or bottom of door against face frame||1. Hinge needs adjustment or cabinet out of square.
2. Very dry conditions can cause door warpage.
|1. Check cabinet alignment for level and plumb. Adjust cabinet and door hinge.
2.Try to control humidity level at 35O .
|Double doors do not line up top or bottom.||Cabinets mounted on wall crooked or out of square.||1. Loosen screws and use shims to align cabinet.
2. Loosen door hinge screws and adjust.
|Drawer face panel will not fit flush against cabinet.||Drawer track glide out of adjustment.||1. Remove drawer and position glide near center.
2. Insert drawer back on track.This should fix alignment.
NOTE: Don’t allow screw heads from door hardware to scratch face frames. To avoid this, countersink screw heads so they can’t strike face frame.
CAUTION: Self-cleaning appliances are cleaned by intense heat during the cleaning cycle. If the oven door gasket does not seal properly, intense heat may escape from the appliance. Removal of adjacent doors and drawers is recommended prior to oven cleaning.
General Installation Video
The video contains helpful information for installing European-style frameless cabinets, just like Mod Cabinetry. Watch the video to learn helpful information for installation as well as step-by-step instructions.
Mod Feature: Filler Molding
- The filler package comes with 2 pieces. The 1.5” wide piece is the backer block and is attached to the cabinet flush with the cabinet box. The 4” piece is the filler.
- It should be scribed to fit between the cabinet and the wall. It is installed in front of the backer block flush with the doors. Leave a ⅛” reveal between the door and the filler (front piece) to allow the door to open and to match all of the other reveals between doors.
Illustration 1. Filler Molding Top View

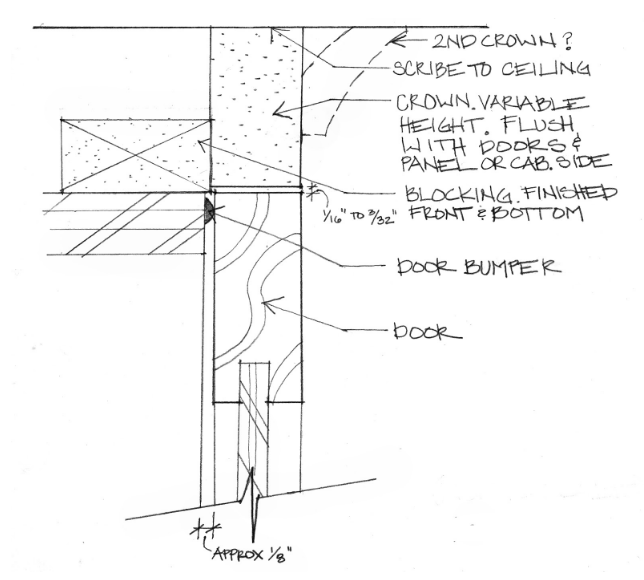

Mod Feature: Installing Crown Molding
- The crown molding kit comes in 2 pieces.
- The filler package comes with 2 pieces. The 1.5” wide piece is the backer block and is attached to the cabinet flush with the cabinet box. The 6” piece is the crown molding. It is installed in front of the backer block flush with the doors. Leave a ⅛” reveal between the door and the filler (front piece) to allow the door to open and to match all of the other reveals between doors.
Illustration 2. Flush crown Side View
Mod Feature: Installing Light Rail
- The light molding kit comes with 2 pieces.
- The 1.5” wide piece is the backer block and is attached to the cabinet flush with the cabinet box. The 1.5” piece is the filler. It should be scribed to fit the opening between the cabinet and the wall. It is installed in front of the backer block flush with the doors. Leave a ⅛” reveal between the door and the filler (front piece) to allow the door to open and to match all of the other reveals between doors.
Illustration 3. Flush Light Rail Side View
Mod Feature: Installing Finished Side Panels
Finished Side Panel
- Applied to exposed sides of cabinets.
- Areas included but are not limited to are final cabinet runs on the upper, base or tall cabinets. Sides of refrigerators, a dishwasher at the end of a run, uppers on either side of a hood, stacking uppers near a set of shorter uppers etc.
Illustration 4. Flush Finished Side Panel Top View

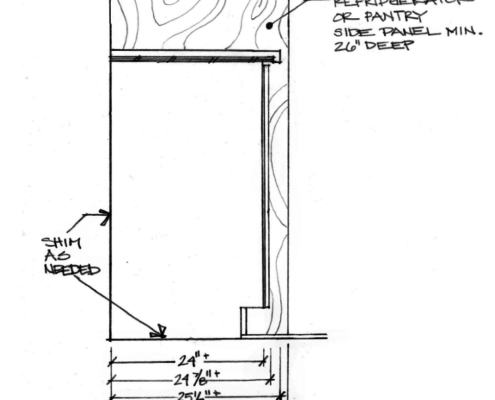

Mod Feature: Side Panel Ref/Pantry
Illustration 5. Flush Finished Side Panel Refrigerator/ Pantry Side View
