The NKBA Kitchen & Bathroom Planning Guidelines is a collection of planning suggestions to help effective planning of kitchens and bathrooms. These guidelines are excerpted from the National Kitchen & Bath Association Professional Resource Library Kitchen Planning and Bath Planning volumes.

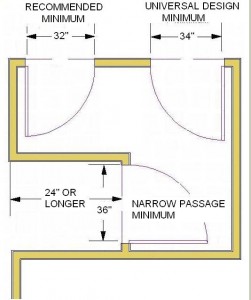

Rule 2: Kitchen Door Clearance

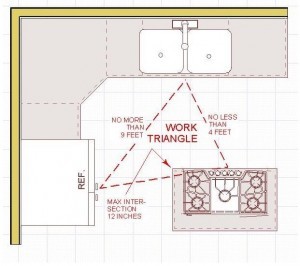

Rule 3: Distance Between Work Centers (Kitchen Triangle)

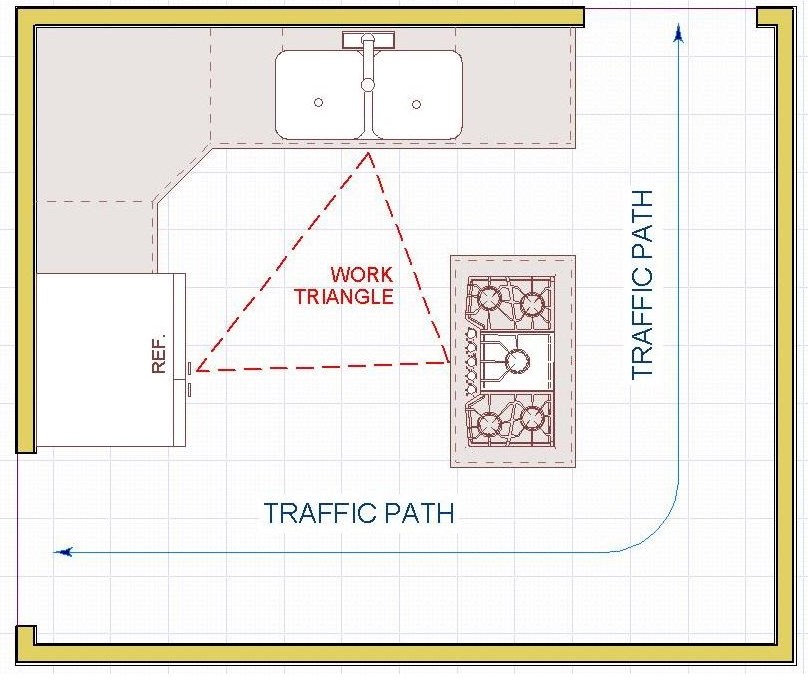

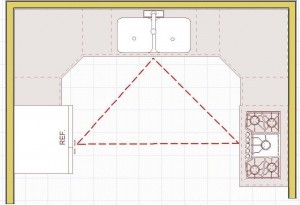

Guideline: In a kitchen with three work centers the sum of the three traveled distances should total no more than 26′ with no single leg of the triangle measuring less than 4 feet nor more than 9 feet.
- A major appliance and its surrounding landing/work area form a work center. The distances between the three primary work centers (cooking surface, clean-up/prep primary sink, and refrigeration storage) form a work triangle.
- When the kitchen plan includes more than three primary appliance/work centers, each additional travel distance to another appliance/work center should measure no less than 4′ nor more than 9′.
- Each leg is measured from the center-front of the appliance/sink.
- No work triangle leg may intersect an island/peninsula or other obstacle by more than 12″.
Rule 4: Separating Work Centers
Rule 7: Walkways

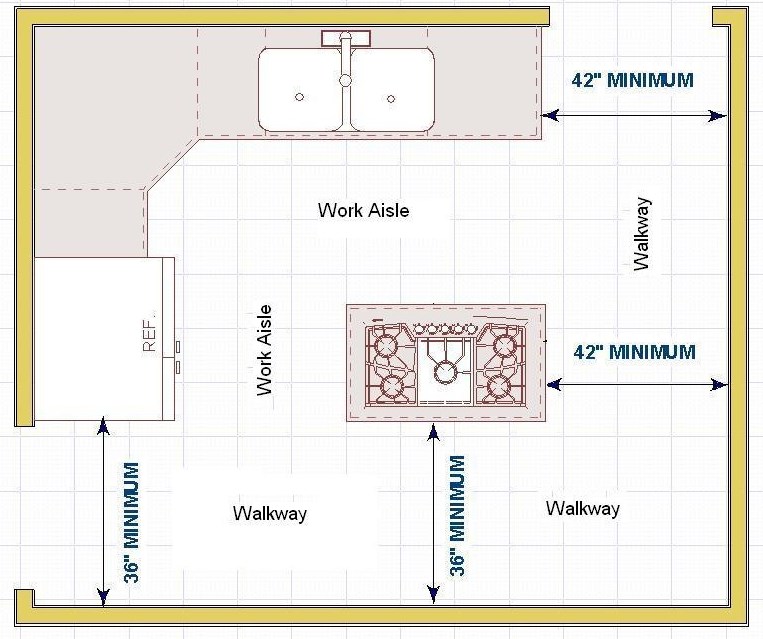

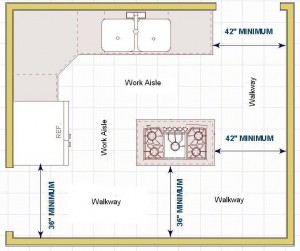

Guideline: The width of a walkway should be at least 36”. If two walkways are perpendicular to each other, one walkway should be at least 42” wide.

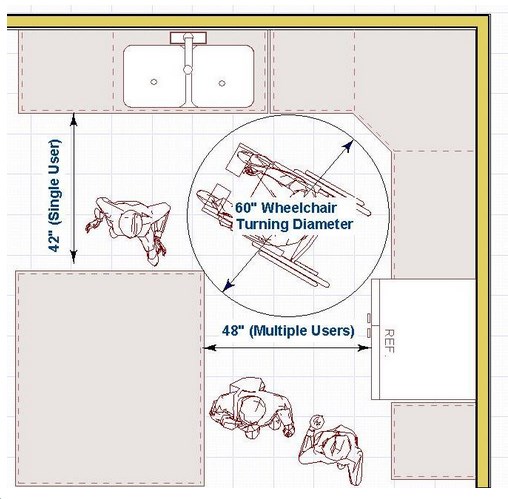

Walkway vs. Work Aisle:
- There is a great deal of confusion over the distinction between a walkway and a work aisle. A work aisle is where a person stands while working in the kitchen. A walkway is the passageway through the kitchen.

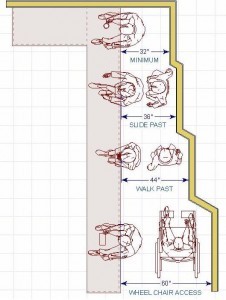

Rule 8: Traffic Clearance for Seating
Guideline: In a seating area where no traffic passes behind a seated diner, allow 32” of clearance from the counter/table edge to any wall or other obstruction behind the seating area. In a seating area where no traffic passes behind a seated diner, allow 36” of clearance from the counter/table edge to any wall or other obstruction behind the seating area, any area with more than one seat requires a minimum of 36″. If traffic passes behind the seated diner, allow at least 44” to walk past.

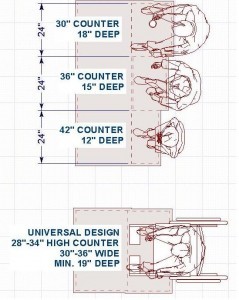

Rule 9: Seating Space
Guideline: Kitchen seating should be a minimum of 24″ wide for each person and:
- For 30″ high tables/counters, a minimum 18″ deep clear knee space for each seated diner.
- For 36″ high counters, a minimum 15″ deep clear knee space for each seated diner.
- For 42″ high counters, a minimum 12″deep clear knee space for each seated diner.

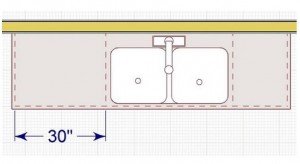

Rule 11: Cleanup/Prep Sink Landing Area

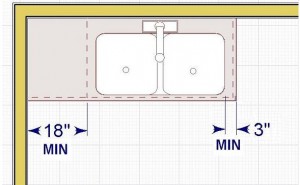

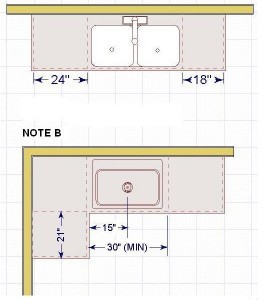

Guideline: Include at least a 24” wide landing area to one side of the sink and at least an 18” wide landing area on the other side.
- Note A: If all of the countertop at the sink is not the same height, then plan a 24” landing area on one side of the sink and 3” of countertop frontage on the other side, both at the same height as the sink.
- Note B: The 24” of recommended landing area can be met by 3” of countertop frontage from the edge of the sink to the inside corner of the countertop if more than 21” of countertop frontage is available on the return.
Rule 13: Dishwasher Placement
Guideline: Locate nearest edge of the primary dishwasher within 36” of the nearest edge of a cleanup/prep sink.
- Note A: Provide at least 21”* of standing space between the edge of the dishwasher and countertop frontage, appliances and/or cabinets, which are placed at a right angle to the dishwasher.
- Note B: *In a diagonal installation, the 21” is measured from the center of the sink to the edge of the dishwasher door in an open position.

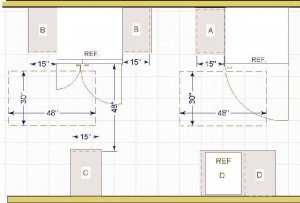

Rule 16: Refrigerator Landing Area

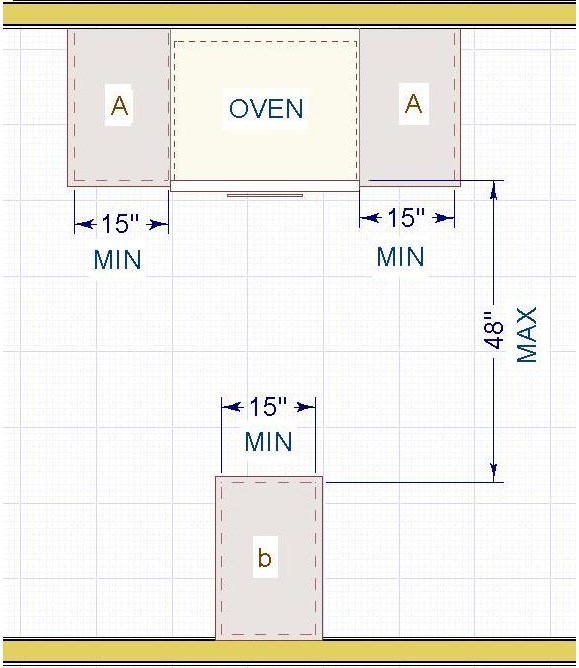

Guideline: Include at least:
- 15” of landing area on the handle side of the refrigerator, or
- 15” of landing area on either side of a side-by-side refrigerator, or
- 15” of landing area which is no more than 48” across from the front of the refrigerator, or
- 15” of landing area above or adjacent to any undercounter style refrigeration appliance.

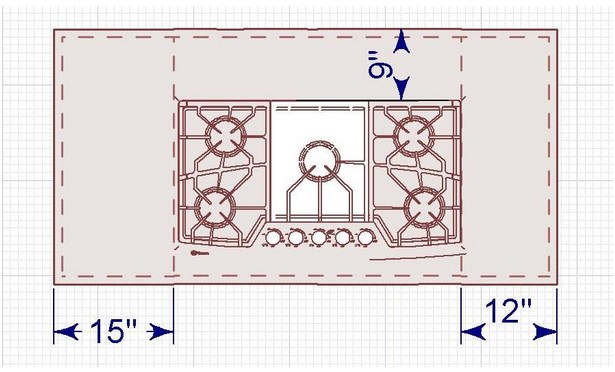

Rule 17: Cook Surface Landing Area
Guideline: Include a minimum of 12” of landing area on one side of a cooking surface and 15” on the other side.
- Note A: The 12” and 15” landing areas must be at the same height as the cooking surface.
- Note B: For safety reasons, in an island or peninsula situation, the countertop should also extend a minimum of 9” behind the cooking surface if the counter height is the same as the surface-cooking appliance.
- Note C: For an enclosed configuration, a reduction of clearances shall be in accordance with the appliance manufacturer’s instructions or per local codes. (This may not provide adequate landing area.)

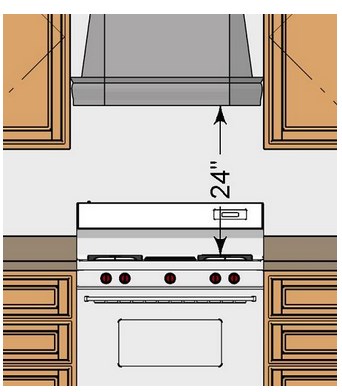

Rule 19: Cooking Surface Ventilation
Guideline: Provide a correctly sized, ducted ventilation system for all cooking surface appliances. The recommended minimum is 150 cubic feet of air per minute (cfm).
Rule 20: Cooking Surface Safety
- Do not locate the cooking surface under an operable window.
- Window treatments above the cooking surface should not use flammable materials.
- A fire extinguisher should be located near the exit of the kitchen away from cooking equipment.
Rule 21: Microwave Oven Placement

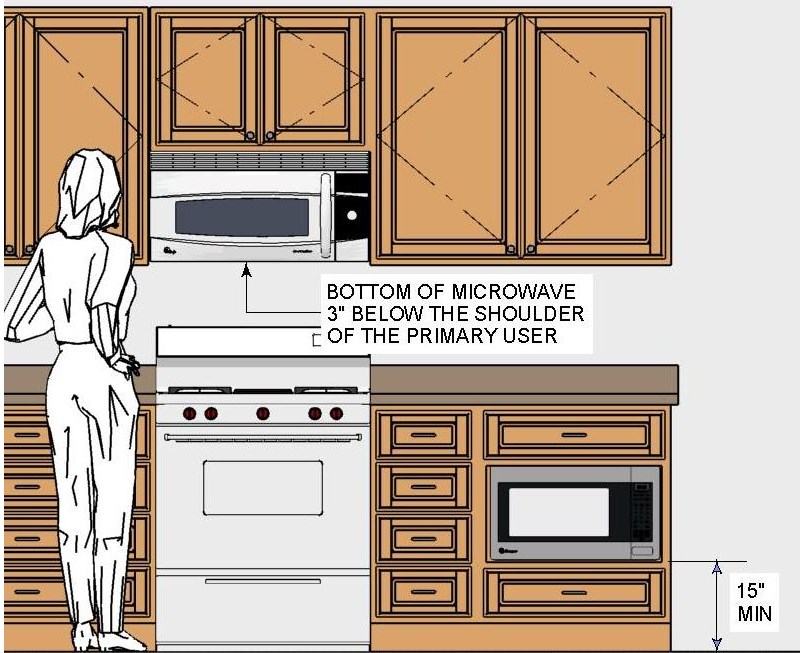

Guideline: Locate the microwave oven after considering the user’s height and abilities. The ideal location for the bottom of the microwave is 3” below the principal user’s shoulder but no more than 54” above the floor. If the microwave oven is placed below the countertop the oven bottom must be at least 15” off the finished floor.

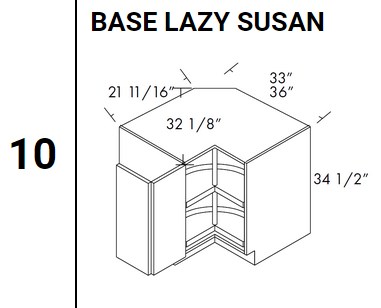

Rule 27: Storage
|Guideline: The total shelf/drawer frontage is:|
- Shelf and drawer frontage is determined by multiplying the cabinet size by the number and depth of the shelves or drawers in the cabinet, using the following formula: Cabinet width in inches x number of shelf/drawers x cabinet depth in feet (or fraction thereof) = Shelf/Drawer Frontage.

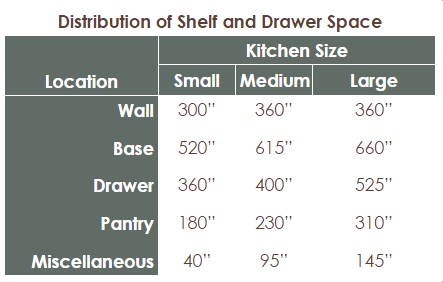

- The recommended distribution for the shelf/drawer frontage in inches is shown in the table above. The totals for wall, base, drawer and pantry shelf/ drawer frontage can be adjusted upward or downward as long as the recommended total stays the same.
Rule 28: Storage at Main Sink
Guideline: Of the total recommended wall, base, drawer and pantry shelf/drawer frontage, the following should be located within 72” of the centerline of the main sink:
- at least 400” for a small kitchen (less than 150 sq. ft.);
- at least 480” for a medium kitchen (150-350 sq. ft.);
- at least 560” for a large kitchen (more than 350 sq. ft.).
Rule 30: Electrical Receptacles
Guideline: GFCI (Ground-fault circuit-interrupter) protection is required on all receptacles servicing countertop surfaces within the kitchen. (IRC E 3802.6). Refer to IRC E 3801.4.1 through E 3801.4.5 for receptacle placement and locations.
Rule 31: Lighting
Guideline: In addition to general lighting required by code, every work surface should be well illuminated by appropriate task lighting.
